Cnlinko Connector YM-20 Electrical Ip68 3 Pin Power Male Female Panel Mount Led Waterproof Plug Connector

Name: Cnlinko Connector YM20 Electrical Ip68 3 Pin Power Male Female Panel Mount Led Waterproof Plug Connector
Brand: CNLINKO
Price: 2.81 USD

China Cnlinko Connector YM-20 Electrical Ip68 3 Pin Power Male Female Panel Mount Led Waterproof Plug Connector wholesale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YM-20-C03PE-02-001

MOQ : 2

Price : $2.81-3.27

Type : Powercon, waterproof connector

Application : Power, LED Strips, LED linear lights

Gender : male

Pins : 3 pin

Product name : waterproof connector

Protection level : IP65/IP67

Connector type : Male Pins

Connecting mode : Easy locking type

Cable length : per your requirement

Cable guage : per your requirement

Certificates : CE,Rosh,3C,IP65,IP67

Contact Now

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	2.5~4mm² /14-12AWG
Diameter range	Φ9.0mm ~Φ13.0mm
Contact diameter×Qty	Φ2.7×3
Current rating(A)	20A
Temperature rise	20A contact temperature below 30℃ 25A contact temperature below 40℃ 30A contact temperature below 50℃
Operating voltage(AC.V.rms)	500V
Withstanding voltage(AC.V)1min	2500V
Contact resistance	<1mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
shell & Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

Cnlinko Connector YM-20 Electrical Ip68 3 Pin Power Male Female Panel Mount Led Waterproof Plug Connector

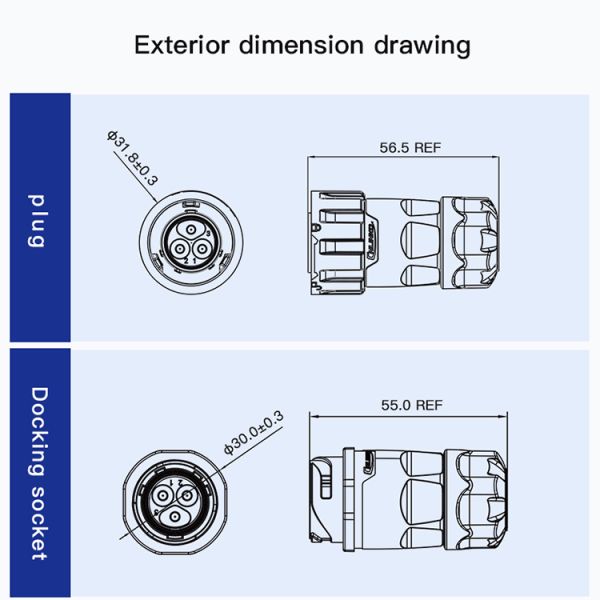

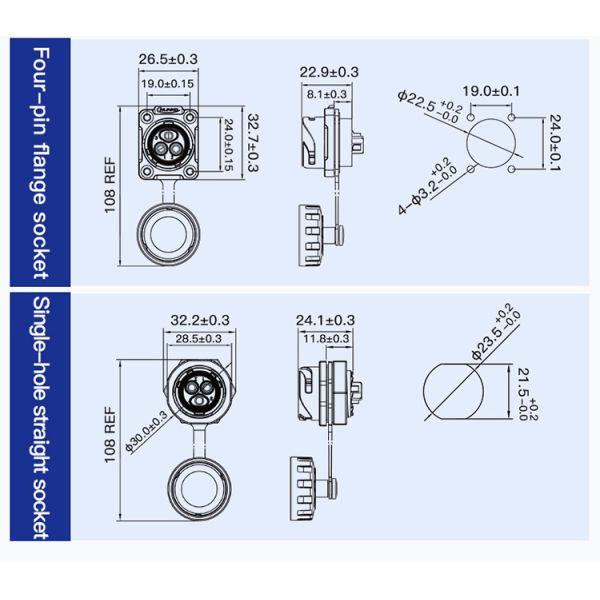

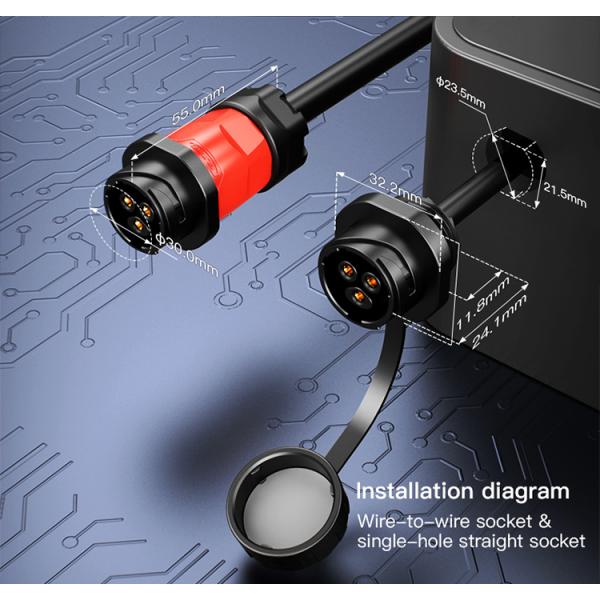

Cnlinko Connector YM-20 Electrical Ip68 3 Pin Power Male Female Panel Mount Led Waterproof Plug Connector Images
